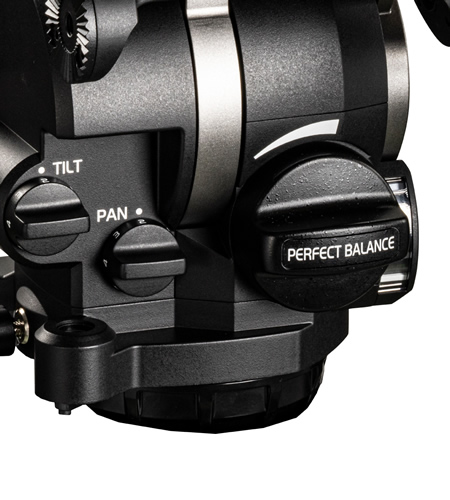

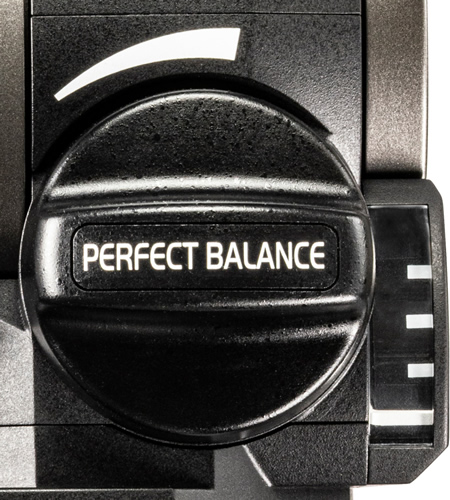

Libec's unique continuous perfect counterbalance system enables the camera to perfectly balance at any tilt angle. |
|---|---|
 |

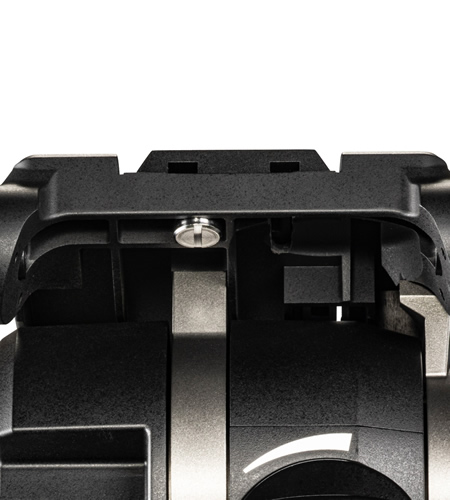

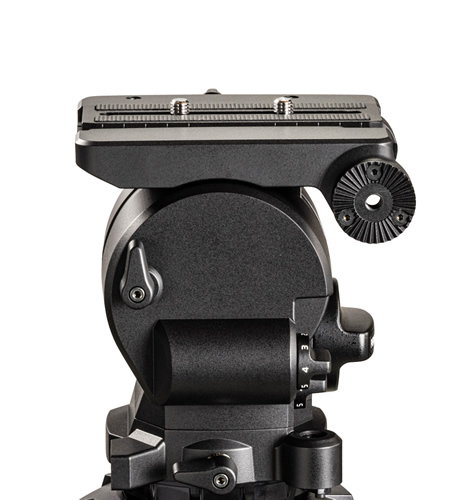

The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup. |
| System components | |
|---|---|

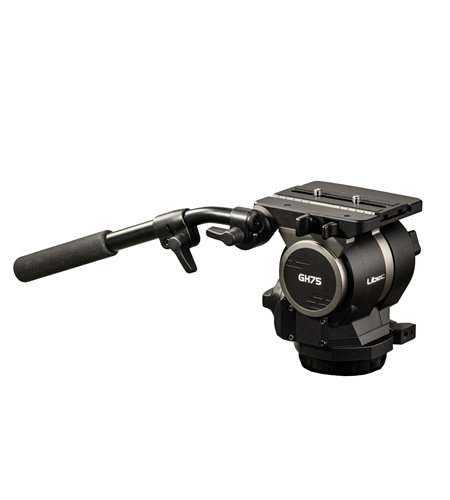

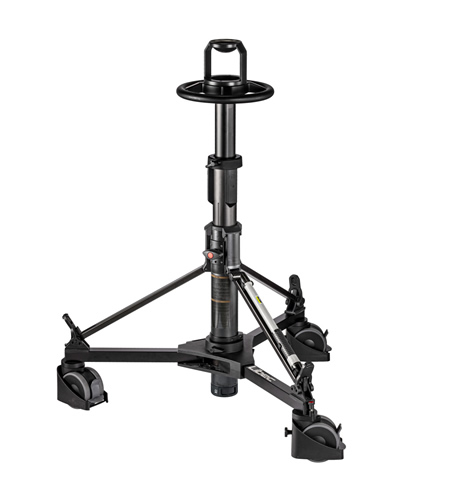

| Head: GH75 | Pedestal: P110S |
| Pan handle: PH-8B x2 | |
| Operation manual | |
|---|---|
| GH75 | P110S |
| Specification sheet | |
| GS-750PDS | GH75 |
| Service parts | |
| GH75 | P110 Column |
| DL-10RB | PH-8B |
| Specifications | |
|---|---|
| Counterbalance range | 5.5 to 14kg / 12 to 31lb (C.G.125mm) |
| Payload | 17kg / 37.5lb |
| Counterbalance | Perfect Balance |
| Continuous Counterbalance with Meter | |

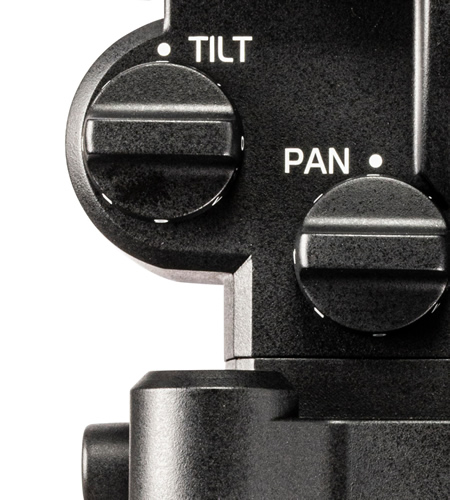

| Drag mode | 7 steps |
| Tilt angle | +90° to -70° |

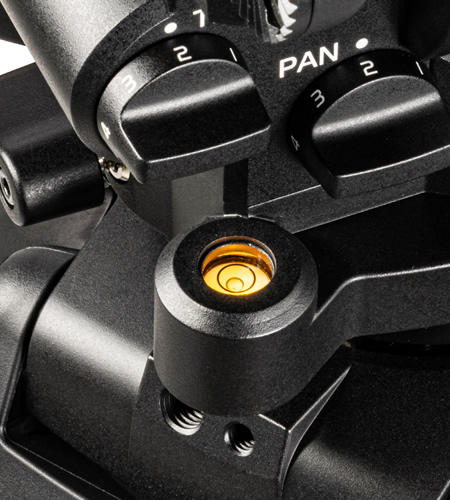

| Bubble level | Illuminated |
| Camera plate | Sliding plate |
| Sliding range | +/-55mm / +/-2.2" |
| Long sliding plate | Optional |
| Head base | 100mm ball |
| Plate attachment | 3/8" screw x 2 |
| Accessory attachments | Head: 1/4" & 3/8" screw holes |
| Spare screw | 3/8" screw |
| Weight | 22.2kg / 48.8lb |
| Height | 98.5 to 174cm / 38.8 to 68.5" |
| Head attachment | 100mm bowl |
| Column | 2-Stage |

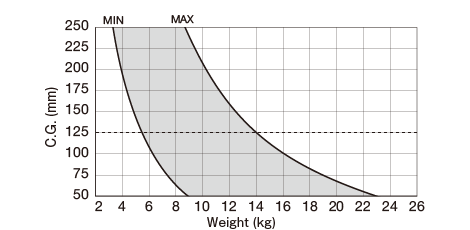

| GH75 Counterbalance chart |
|---|
 *When the innerspring is set to maximum strength, the tilt angle is limited to +/-40 degrees. |
