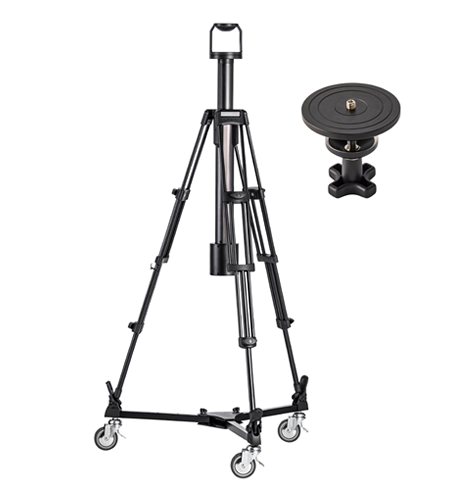

Electric pedestal with Dolly
Payload 10kg / 22lb

Operation manual
LX-ePed Studio
Specification sheet
LX-ePed Studio
Service parts
LX-ePed Column
Payload 10kg / 22lb
Elevation 400mm
Raising / Lowering speed Approx. 14 to 40 secs. / movement
Continuous operating time 3 minutes
LAN cable for controller 30m / 98.4'
Power cable 3m / 9.8'
Power AC100V~240V
Temperature range -10°C to 40°C below RH90%
Battery-powered Optional
Camera attachment 1/4" and 3/8" screws
Head attachment 100mm / 75mm bowl
Accessory attachment 1/4" and 3/8" screw holes x 2
Bubble level Available
Weight 14.2kg / 31.3lb
Height 106.4 to 261cm / 41.8" to 102.7"
Section 2-Stage
