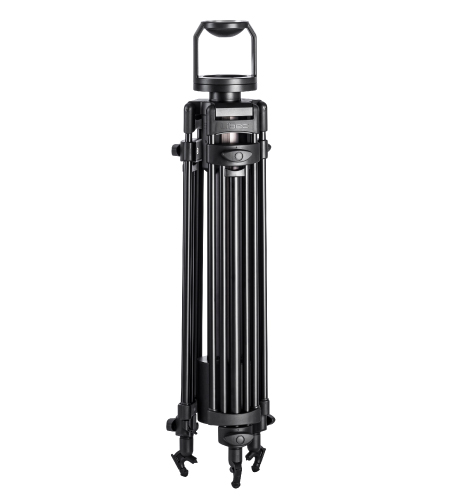

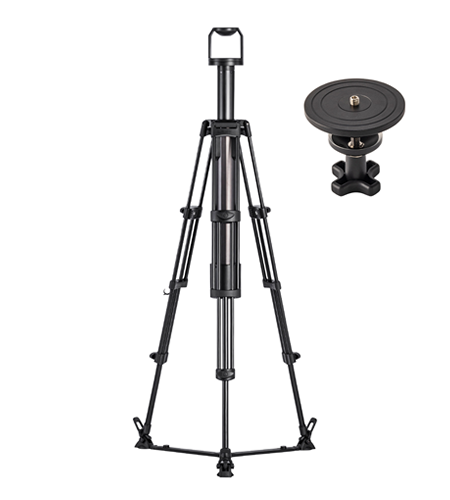

Electric pedestal with Floor Spreader
Payload 10kg / 22lb

Operation manual
LX-ePed
Specification sheet
LX-ePed
Service parts
LX-ePed Column
Specifications
Payload 10kg / 22lb

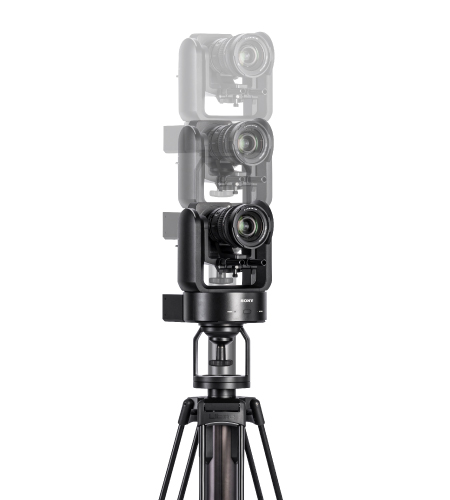

Elevation 400mm
Raising / Lowering speed Approx. 14 to 40 secs. / movement
Continuous operating time 3 minutes

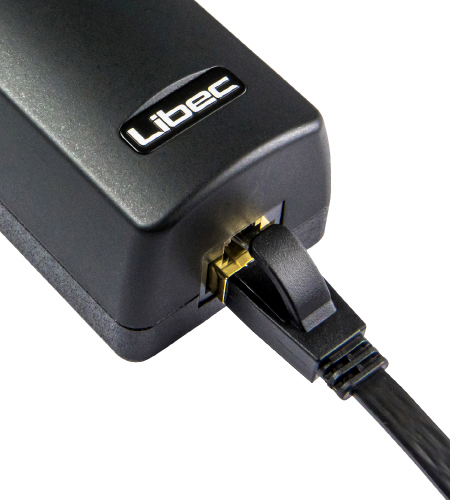

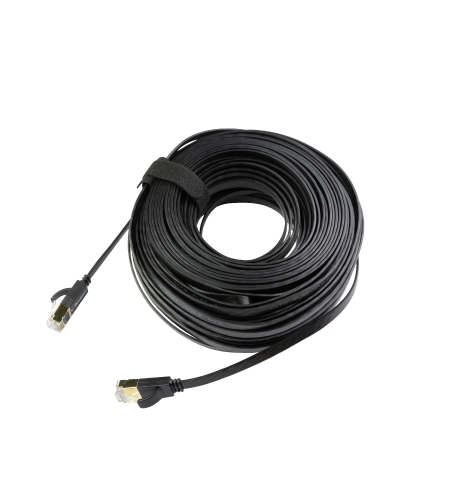

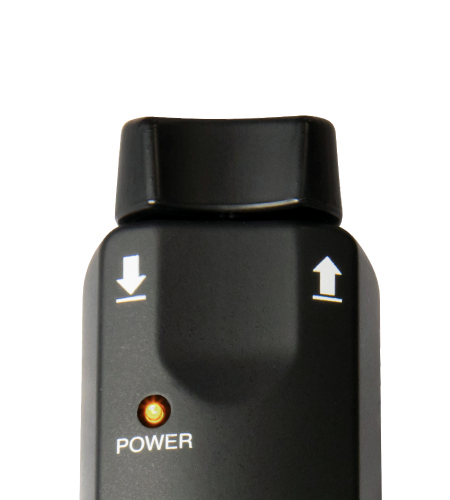

LAN cable for controller 30m / 98.4'
Power cable 3m / 9.8'
Power AC100V~240V
Temperature range -10°C to 40°C / -40°F to 104°F below RH90%
Battery-powered Optional

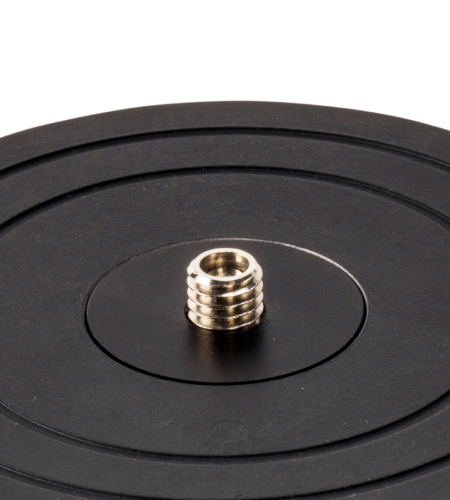

Camera attachment 1/4" and 3/8" screws

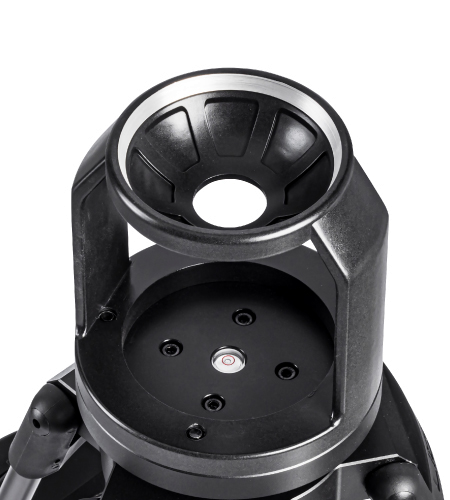

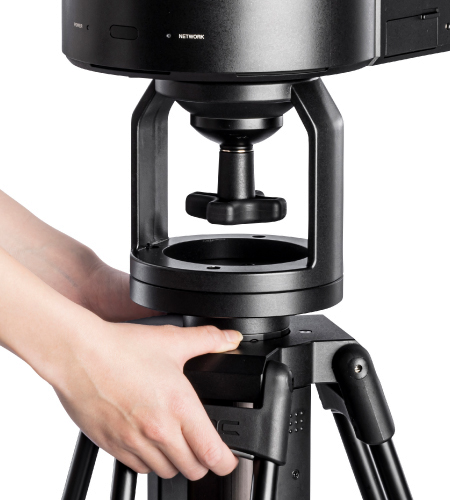

Head attachment 100mm / 75mm bowl

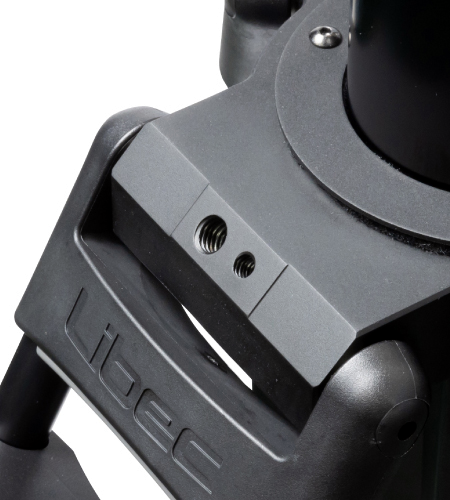

Accessory attachment 1/4" and 3/8" screw holes x 2

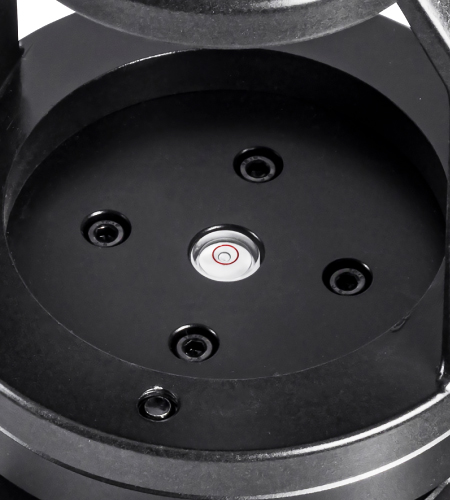

Bubble level Available
Weight 11.2kg / 24.6lb
Height 95.3 to 247cm / 37.5" to 97.2"
Section 2-Stage
