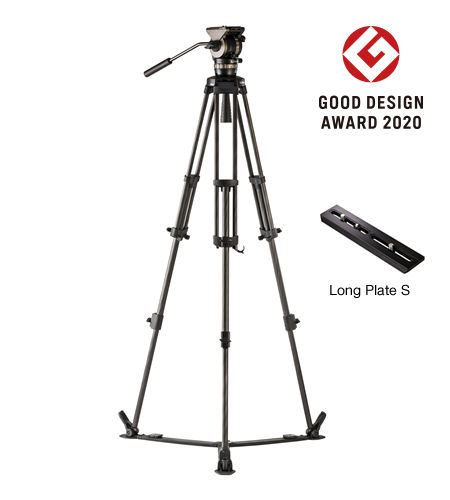

System with floor spreader(Carbon pipe)
Payload 10kg / 22lb

System components
Head:NH30 Tripod: RT20C
Spreader: SP-1B Case: RC-20
accessory:Long Plate S
Operation manual
NH30 RT20C
SP-1B
Specification sheet
NX-300C NH30
RT20C SP-1B
Long Plate S
Service parts
NH30 RT20C
SP-1B
Specifications
Counterbalance Range 0 to 10kg / 0 to 22lb(C.G.55mm)
Payload 10kg / 22lb
Counterbalance Free plus 5STEP
Drag mode Free plus 3STEP
Drag system Multilayered Metal Structure
Tilt angle +90° / -70°
Temperature range -40°C to +60°C / -40°F to +140°F
Bubble level Illuminated
Camera plate Sliding plate compatible
Compatible with Manfrotto and Sachtler heads
Sliding range +/-30mm / 1.2"
Long sliding plate Included
Head attachment 75mm ball / Flat base
Plate attachment 1/4" screw with video pin
Accessory attachment 1/4" and 3/8" screws holes
Spare screw 1/4" and 3/8" screws
Weight 4.1kg / 9lb
Height 53 to 168cm / 20.8 to 66.1"
Head attachment 75mm bowl
Pipe material Carbon
Section 2-Stage
NH30 Counterbalance chart
