Head
Payload 10kg / 22lb

Operation manual
NH30
Specification sheet
NH30
Service parts
NH30
Specifications
Counterbalance Range 0 to 10kg / 0 to 22lb(C.G.55mm)
Payload 10kg / 22lb
Counterbalance Free plus 5STEP
Drag mode Free plus 3STEP
Drag system Multilayered Metal Structure
Tilt angle +90° / -70°
Temperature range -40°C to +60°C / -40°F to +140°F

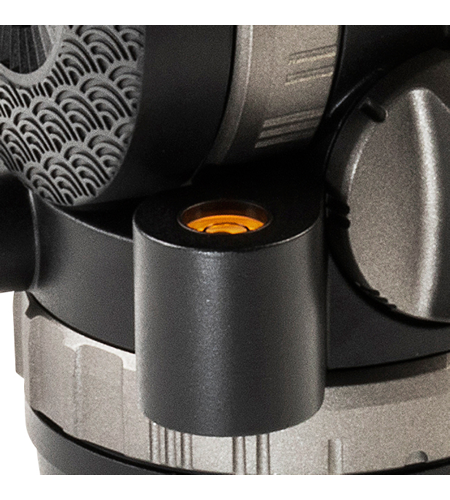

Bubble level Illuminated
Camera plate Sliding plate compatible
Compatible with Manfrotto and Sachtler heads
Sliding range +/-30mm / 1.2"
Long sliding plate Included
Head base 75mm ball / Flat base
Plate attachment 1/4" screw with video pin
Accessory attachment 1/4" and 3/8" screws holes
Spare screw 1/4" and 3/8" screws
Weight 1.8kg / 4lb

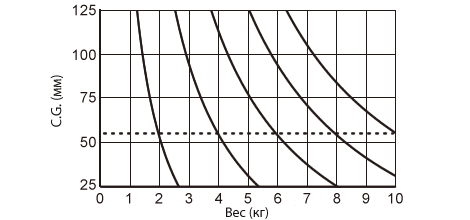

NH30 Counterbalance chart
