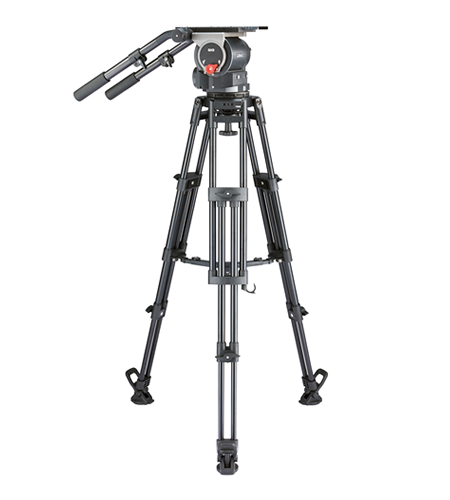

System with mid-level spreader
Payload 69kg / 151.8lb

System components
Head: QH3 Tripod: T150B
Spreader: BR-6B Large rubber feet: FP-6B
Operation manual
QH3 T150B
BR-6B FP-6B
Specification sheet
QH3 QD-30M
T150B
Service parts
QH3 T150B
BR-6B FP-6B
Specifications
Counterbalance range 28 to 65kg / 61.6 to 143lb (C.G.125mm)
Payload 69kg / 151.8lb
Counterbalance Perfect Balance
Continuous Counterbalance with Meter
Drag mode 7 steps
Drag system Multilayered Metal Structure
Tilt angle +90° / -70°
Temperature range -20°C to +60°C / -4°F to +140°F
Bubble level Illuminated
Camera plate Sliding plates
Sliding range +/-75mm / 2.9"
Head base 150mm ball / Flat base with 4 bolts
Plate attachment 3/8" screw × 2
Spare screw 3/8" screw × 2
Weight 21.4kg / 47.1lb
Height 97.5 to 186cm / 38.5 to 73"
Head attachment 150mm bowl
Section 2-Stage
