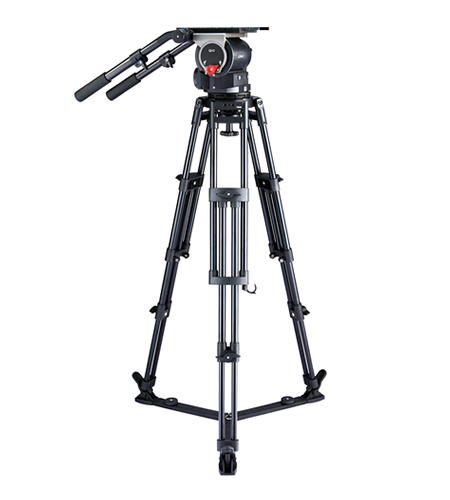

System with floor spreader
Payload 40kg / 88.0lb

System components
Head: QH1 Tripod: T150B
Spreader: SP-15B
Operation manual
QH1 T150B
Specification sheet
QH1 QD-10
Service parts
QH1 T150B
Counterbalance range 15 to 35kg / 33 to 77lb (C.G.125mm)
Payload 40kg / 88lb
Counterbalance Perfect Balance
Continuous Counterbalance with Meter
Drag mode 7 steps
Drag system Multilayered Metal Structure
Tilt angle +90° / -70°
Temperature range -20°C to +60°C / -4°F to +140°F
Bubble level Illuminated
Camera plate Sliding plate
Sliding range +/-75mm / 2.9"
Head base 150mm ball / Flat base with 4 bolts
Plate attachment 3/8" screw × 2
Spare screw 3/8" screw × 2
Weight 21.6kg / 47.5lb
Height 82 to 186.5cm / 32.5 to 73.5"
Head attachment 150mm bowl
Section 2-Stage
