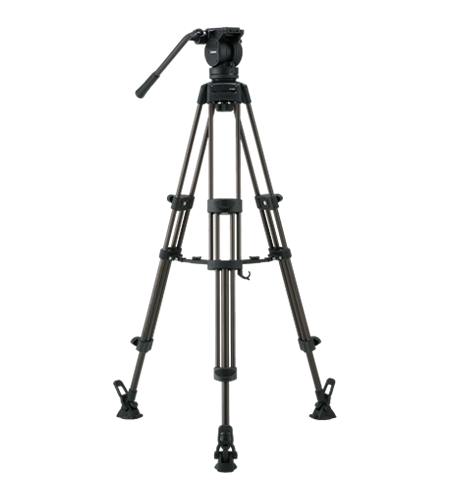

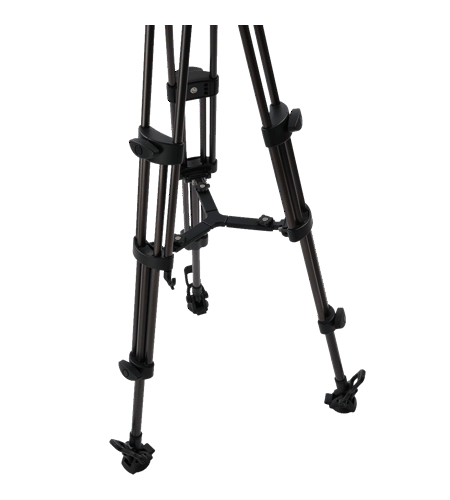

System with mid-level spreader
Payload 5kg / 11.0lb

System components
Head: LX5 Head Tripod: RT30B
Spreader: BR-2B Large rubber feet : FP-2B
Case: RC-20
Operation manual
LX5 Head RT30B
BR-2B FP-2B
Specification sheet
LX5 M LX5 Head
RT30B BR-2B
FP-2B
Service parts
LX5 Head RT30B
BR-2B FP-2B
Specifications
Payload 5kg / 11.0lb
Counterbalance FIX
Drag mode FIX
Tilt angle +90° / -80°
Temperature range -20°C to +60°C / -4°F to +140°F
Bubble level Non illuminated
Camera plate Sliding plate
Sliding range +/-40mm / 1.6"
Plate attachment 1/4" screw with video pin
Spare screw None
Weight 5.2kg / 11.4lb
Height 81 to 165.5cm / 32.0 to 65.0"
Ball diameter 75mm
Section 2STAGE
LX5 Counterbalance chart
