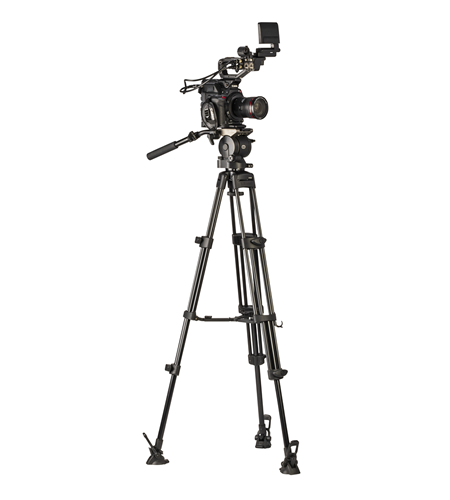

System with mid-level spreader
Payload 8kg / 17.6lb

  • Long Plate S

  • RC-30

System components

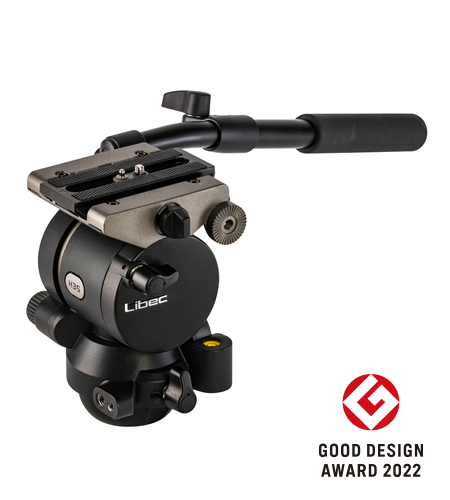

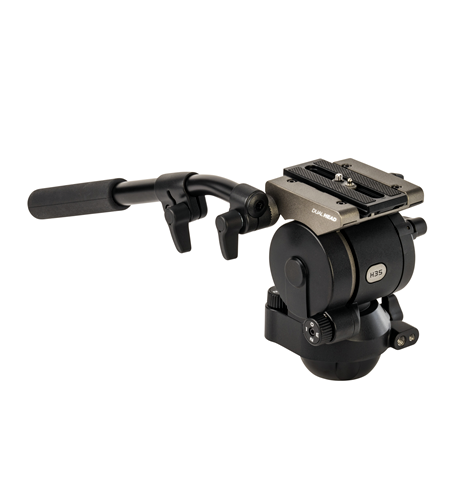

Head: H35 Tripod: RT30B
Spreader: BR-2B Large rubber feet: FP-2B

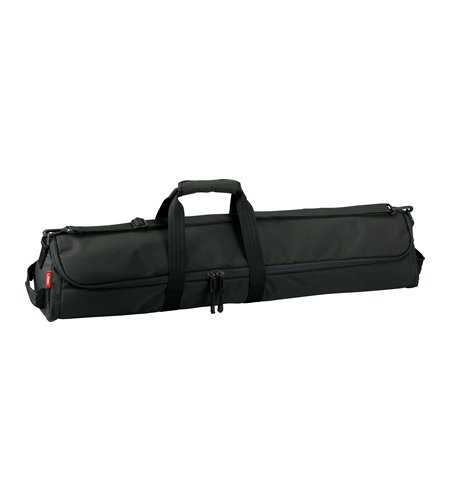

Long sliding plate: Long Plate S Case: RC-30
Operation manual
H35 RT30B
Specification sheet

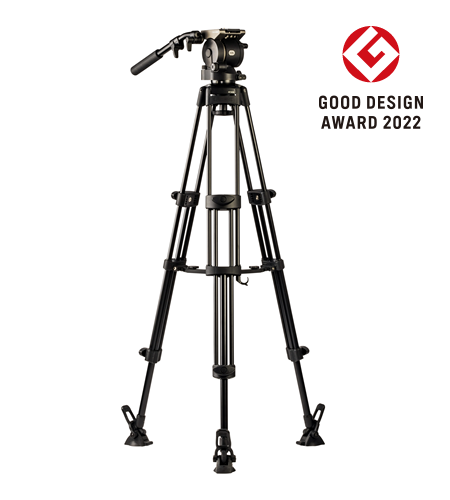

HS-350M H35
FP-2B Long Plate S
Service parts
H35 RT30B
Counterbalance range 3 to 7.5kg / 6.6 to 16.5lb (C.G.100mm)
Payload 8kg / 17.6lb
Counterbalance Perfect Balance
Continuous Counterbalance with Illuminated Meter
Drag mode Free plus 3 steps
Drag system Multilayered Metal Structure
Tilt angle +90° / -70°
Temperature range -40°C to +60°C / -40°F to +140°F
Bubble level Illuminated
Camera plate Sliding plate compatible
with Manfrotto and Sachtler heads
Sliding range +/-30mm / 1.2"
Long sliding plate Included
Head base 75mm ball / Flat base
Plate attachment 1/4" screw with video pin
Accessory attachments 1/4" and 3/8" screw holes
Spare screw 1/4" and 3/8" screws
Weight 6kg / 13.2lb
Height 81 to 166cm / 31.9 to 65.4"
Head attachment 75mm bowl
Pipe material Aluminium
Section 2-Stage

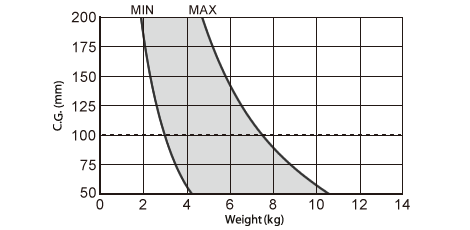

H35 Counterbalance chart
*When the innerspring is set to maximum strength, the tilt angle is limited to +/-40 degrees.
