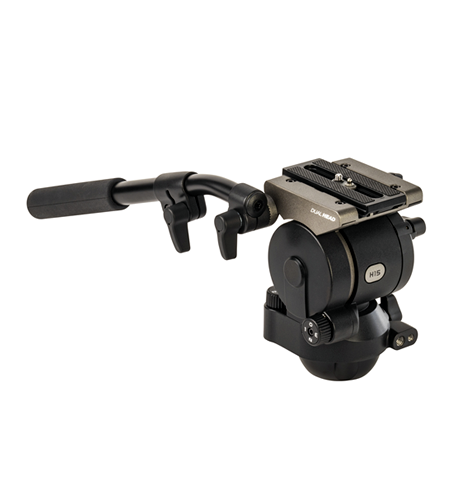

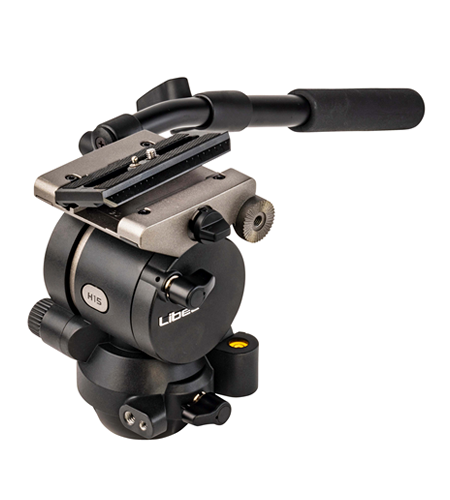

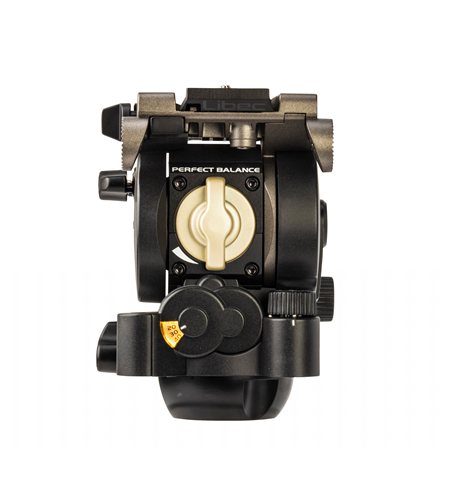

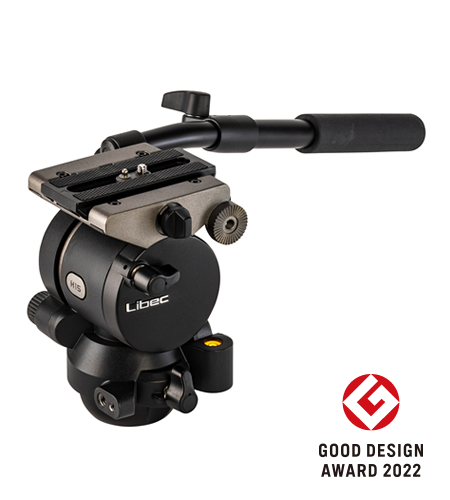

Libec's unique continuous perfect counterbalance system enables the camera to perfectly balance at any tilt angle. |
|---|---|
 |
The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup. |
 |
Dual-head specification available for both 75mm bowl and flat base tripods. Mountable on sliders, skater dollies, and other equipment. |
 |

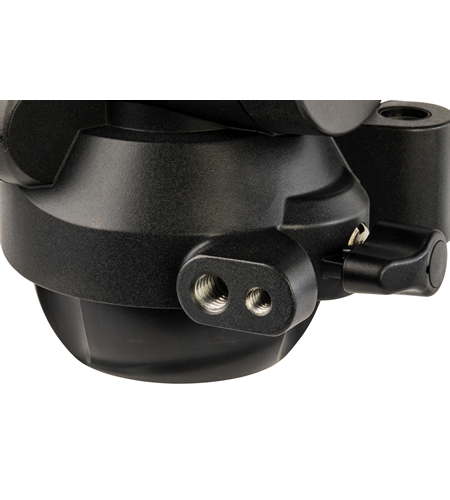

By removing the spacer from the bowl clamp, the length of the insertion thread is extended, offering more equipment options that can be attached to the head. |
 |
| Operation manual | |
|---|---|
| H15 | |
| Specification sheet | |
| H15 | |
| Service parts | |
| H15 | |
| Specifications | |
|---|---|
| Counterbalance range | 0.8 to 2kg / 1.7 to 4.4lb (C.G.55mm) |
| Payload | 3kg / 6.6lb |
| Counterbalance | Perfect Balance |
| Continuous Counterbalance with Illuminated Meter | |
| Drag mode | Free plus 3 steps |
| Drag system | Multilayered Metal Structure |
| Tilt angle | +90° / -70° |
| Temperature range | -40°C to +60°C / -40°F to +140°F |
| Bubble level | Illuminated |
| Camera plate | Sliding plate compatible |
| with Manfrotto and Sachtler heads | |
| Sliding range | +/-30mm / 1.2" |
| Long sliding plate | Optional |
| Head base | 75mm ball / Flat base |
| Plate attachment | 1/4" screw with video pin |
| Accessory attachments | 1/4" and 3/8" screw holes |
| Spare screw | 1/4" and 3/8" screws |
| Weight | 2.7kg / 6lb |
| H15 Counterbalance chart |
|---|
 |
