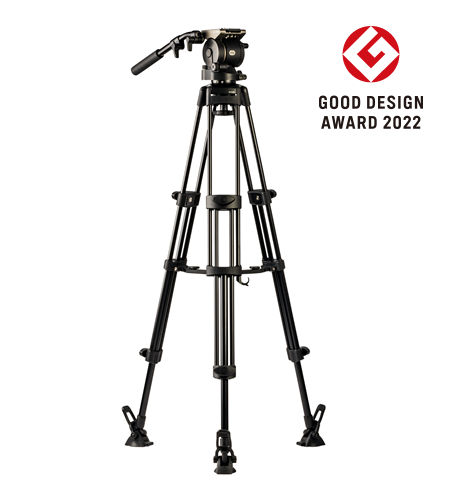

System mit Mittelspinne
Tragkraft 3kg

  • RC-30

Libec's unique continuous perfect counterbalance system enables the camera to perfectly balance at any tilt angle.

The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup.

Dual-head specification available for both 75mm bowl and flat base tripods. Mountable on sliders, skater dollies, and other equipment.

By removing the spacer from the bowl clamp, the length of the insertion thread is extended, offering more equipment options that can be attached to the head.


Systemkomponenten
Neiger: H15 Stativ: RT30B
Spinnen: BR-2B Große Gummifüße: FP-2B
Tragetasche: RC-30
Bedienungsanleitung
H15 RT30B
BR-2B FP-2B
Spezifikationen
HS-150M H15
RT30B BR-2B
FP-2B RC-30
Ersatzteile
H15 RT30B
BR-2B FP-2B
Spezifikationen
Gegengewichtsumfang 0,8 bis 2kg (C.G.55mm)
Traglast 3kg
Gegengewicht Perfektes Gleichgewicht
Stufenloser Gewichtsausgleich mit beleuchteter Skala
Widerstand Modi Frei und 3 Stufen
Wiederstands System Mehrschichtige Metallkonstruktion
Neigungswinkel +90° / -70°
Temperaturbereich -40°C bis +60°C
Wasserwaage beleuchtet
Kameraplatte Schnellwechselplatte
Kompatibel mit Manfrotto und Sachtler Köpfen
Verschiebebereich +/-30mm
Lange Schnellwechselplatte Optional
Halbschale 75mm Halbschale / Flache Basis
Plattenbefestigung 1/4" Schraube mit Video Pin
Zubehörteile 1/4" und 3/8" Schraublöcher
Ersatzschraube 1/4" und 3/8" Schrauben
Gewicht 5,9kg
Höhe 81 bis 166cm
Kopfbefestigung 75mm Schüssel
Material der Rohre Aluminium
Stufen 2-Stufig
H15 Gewichtsaugleichs-Diagramm
