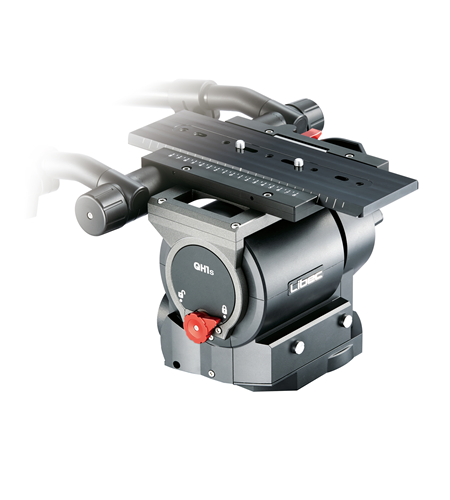

Libec's unique continuous perfect counterbalance system enables the camera to perfectly balance at any tilt angle. |
|---|---|
 |
The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup. |
| Operation manual | |
|---|---|
| QH1s | |
| Specification sheet | |
| QH1s | |
| Service parts | |
| QH1s | |
| Specifications | |
|---|---|
| Counterbalance range | 9 to 23kg / 19.8 to 50.7lb (C.G.125mm) |
| Payload | 30kg / 66lb |
| Counterbalance | Perfect Balance |
| Continuous Counterbalance with Meter | |
| Drag mode | 7 steps |
| Drag system | Multilayered Metal Structure |
| Tilt angle | +90° / -75° |
| Temperature range | -20°C to +60°C / -4°F to +140°F |
| Bubble level | Illuminated |
| Camera plate | Sliding plate |
| Sliding range | +/-75mm / 2.9" |
| Head base | 150mm ball / Flat base with 4 bolts |
| Plate attachment | 3/8" screw × 2 |
| Spare screw | 3/8" screw × 2 |
| Weight | 12.7kg / 27.9lb |
| QH1s Counterbalance chart |
|---|
 *When the innerspring is set to maximum strength, the tilt angle is limited to +/-60 degrees. |
