Outstanding stability and rigidity, while providing height and portability required by ENG tripods. Leg joints are equipped with grips for easy transportation.
  • Upper lock knob

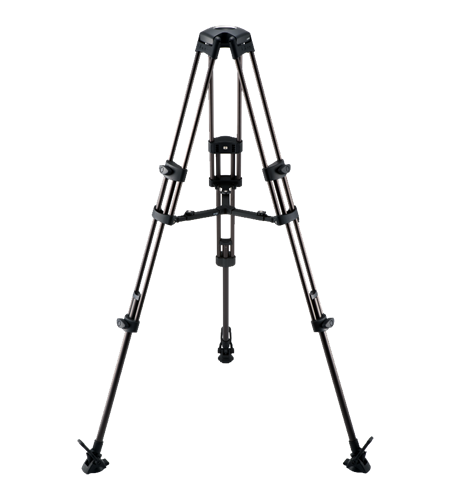

  • Mid-level spreader / Large rubber feet

  • Floor spreader

  • Minimum height

  • Maximum height

Operation manual
RT50B SP-2B

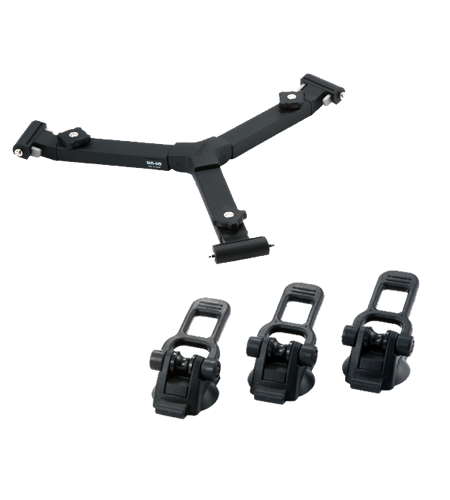

BR-6B FP-2B
Specification sheet
RT50B + SP-2B RT50B+BR-6B/FP-2B
SP-2B BR-6B
FP-2B
Service parts
RT50B SP-2B
BR-6B FP-2B
Specifications
Pipe material Aluminum
Weight 3.1kg / 6.8lb *1
Height 47.5 to 158cm / 18.5 to 62.0" *2
Ball diameter 100mm
Section 2STAGE
*1 The weight is excluding spreaders and rubber feet.
*2 Measured with a floor spreader attached. The height will be different if a mid-level spreader and large rubber feet are attached.
*Spreaders are sold separately
Leg joints are equipped with grips for easy transportation.
Aluminum die casting material is used for the casing for the upper leg fixation screw to ensure a high level of stability.
